Outdoor stairs 3 steps with wooden handrail 7x7cm
This product is manufactured upon order; Manufacturing within 10 to 15 working days + shipping 2 to 5 working days
Outdoor stairs 3 steps with wooden handrail 7x7cm
Outdoor staircase VENEZIA
Wooden outdoor staircase with wooden balustrade - 3 steps H54cm - Various sizes
You are currently visiting the page of deck stairs:
- 3 steps, height 54cm
- Steps type C: The steps are made of pressure-treated planks, size 27x145mm
Is this the height you are looking for?
- If yes, select the width you need at the top on this same page.
- Specify wether you want your outdoor staircase with or without risers. (A riser is a vertical step that closes the space between two steps).
If you want more information about desk stairs, please, have a look on this page: outdoor steps.
Please note! The kit does not include wall or floor fixings! What you need may differ per wall or floor type.
Suitable fixings for these deck stairs wood can be found at the bottom of this page.
Available heights for the wooden VENEZIA stairs with wooden balustrade
3 steps - height 54cm
4 steps - height 71cm
5 steps - height 88cm
6 steps - height 105cm
7 steps - height 122cm
8 steps - height 139cm
9 steps - height 156cm
10 steps - height 173cm
11 steps - height 190cm
12 steps - height 207cm
13 steps - height 224cm
14 steps - height 241cm
15 steps - height 258cm
16 steps - height 275cm
At Vinuovo, we offer multiple types of construction kits for outdoor wooden staircases with handrails.
This outdoor staircase model features a wooden handrail to close off the side.
The main features of this model are:
- 70x70mm wooden handrail in pressure-treated Swedish pine
- Option to choose ahandrail on the left side only, right side only, or on both sides.
- All our models of outdoor staircases with handrails are available with or without risers. For the stability of the handrail, we recommend WITH risers!
- Stainless steel screws branded Reisser
- Stair treads and risers made of pressure-treated wood with a size of 28x145mm, with one smooth side and one side with a comb profile; you choose which side to mount upwards.
- The wooden posts have a size of 85x85mm and are made of pressure-treated Swedish pine, they are laminated to reduce the risk of deformations or warping.
- Delivered as a construction kit and ready for assembly.
- Estimated assembly time: 3 to 5 hours depending on the chosen model.
Additional information
This kit includes 3 wooden stair stringers for stairs with a width of 100cm or more, and 2 stringers for stairs with a width of 80cm.
Wooden stairs from 3 to 8 steps = 1 stair without extension support.
Wooden stairs from 9 to 16 steps = 2 stairs with extension support + fixing material.
For more information, please, have a look on this page: extension support
What are the characteristics and options with these new outdoor steps?
This outdoor staircase features an integrated wooden handrail:
By this, we mean that the balusters of this model are integrated into the width of the stair tread; a corner is cut out of the bottom stair treads to make room for the baluster (the post for the handrail), reducing the usable width of the stair tread.
For example, if you have a staircase that is 60cm wide with integrated balusters on both sides (each with a size of 85x85mm, or 170mm in total), then you have a remaining width of 43cm.
To be honest, this would be a staircase that could only be used by very slim or thin people ;-)
That's why we don't offer this width for models of outdoor wooden staircases with integrated balusters.
The advantage of an integrated wooden handrail is, of course, that there is much less risk of falling.
Moreover, it also looks much nicer.
Outdoor wooden staircase with risers or treads
What do we mean by risers or treads?
As you may have already noticed when trying to configure your staircase, this model is available with or without risers or treads. By "treads," we mean the vertical plank between the steps of your outdoor wooden staircase.
Thanks to the treads, the entire structure becomes much more stable. They prevent the staircase from moving to the left or right when walking on it or when leaning or hanging onto the handrail with your full weight.
Because stability and robustness are essential to us when developing a construction kit (actually, always ;-)), we highly recommend choosing a model WITH treads!
By the way, we have to be honest again and say that we just find it more aesthetically pleasing...
Support posts of the outdoor wooden staircase with integrated wooden handrail and wooden railing.
The support posts of the outdoor wooden staircase with integrated wooden handrail and wooden railing are assembled with support posts to make the staircase completely self-supporting for up to 8 steps.
Another construction kit for mounting against a wall or terrace is also available.
The number of support posts depends on the width of the staircase. For widths of 80cm and 100cm, the staircase is equipped with two support posts, and from a width of 120cm, a third post is included in the construction kit.
In the image next to this, you can even see a model with four support posts that we specially manufactured upon request for a hospitality establishment, which will be used intensively. After all, it can never be sturdy enough ;-)
Attaching the support posts
As mentioned earlier, strength is everything! I admit that I have a preference for heavy-duty constructions, once again, "it can never be sturdy enough!"
In the support posts of the outdoor staircase, we drill holes for attaching the robust 8x160mm screws from the German brand Reisser; you just need to screw them in.
If you have chosen an outdoor staircase with wooden railing with a width of 100cm or more, you will have a third support post in your construction kit. For attaching this third support post, you can use the supplied Reisser retinox screws of 6x120mm; no pre-drilling is necessary, you can simply screw the screws in.
Suitable fixing materials for deck stairs wood
This model outdoor staircase is freestanding up to a height of 8 steps. (we also call this a freestanding staircase).
For models higher than 8 steps, there is a support post in the middle of the staircase, and the stair stringers and the support post for the handrail must be attached to the wall/floor at the top.
How many fixing materials will you be needing?
This depends on the width of your deck stairs:
80cm= 2 stair stringers
100cm to 160cm= 3 stair stringers

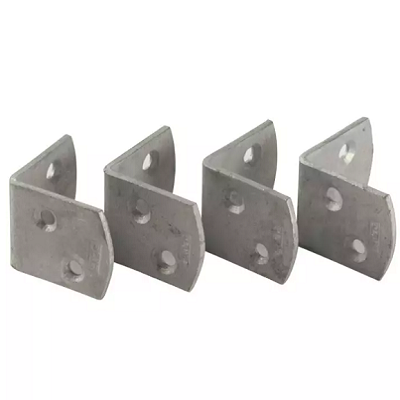

Mounting brackets are more solid then fastening brackets
2 mounting brackets per stair stringer
or
2 fastening brackets per stair stringer
or
1 mounting bracket (on the upper side) and 1 fastening bracket (at the bottom side) per stair stringer
Mounting brackets and fastening brackets are deliverd with the necessary screws that are sufficiently strong for a fixation in solid wood.
Do you wish to attach your deck stairs to a diiferent material? Then please read our tricks and tips in this blogpost: How do you build wooden outdoor stairs.
FAQ - Frequently Asked Questions
Where do you have to install the support post?
Below you will find a list of the different available heights of our construction kits for outdoor staircases with wooden railing.
The indicated height is the height of the last step, with the height of the handrail added on top.
- 3 steps - 54cm
- 4 steps - 71cm
- 5 steps - 88cm
- 6 steps - 105cm
- 7 steps - 122cm
- 8 steps - 139cm
- 9 steps - 156cm (including support post between step 5 and 6)
- 10 steps - 173cm (including support post between step 5 and 6)
- 11 steps - 190cm (including support post between step 6 and 7)
- 12 steps - 207cm (including support post between step 6 and 7)
- 13 steps - 224cm (including support post between step 7 and 8)
- 14 steps - 241cm (including support post between step 7 and 8)
- 15 steps - 258cm (including support post between step 8 and 9)
- 16 steps - 275cm (including support post between step 8 and 9)
Are these stairs independent, or do I have to fix them at the wall?
This model outdoor staircase is freestanding up to a height of 8 steps. (we also call this a freestanding staircase).
For models higher than 8 steps, there is a support post in the middle of the staircase, and the stair stringers and the support post for the handrail must be attached to the wall/floor at the top.
What does the kit contain?
The kit contains everything you need to build you own outdoor steps:
- Stair treads and risers made of pressure-treated wood with a size of 28x145mm, with one smooth side and one side with a comb profile; you choose which side to mount upwards.
- The wooden posts have a size of 85x85mm and are made of pressure-treated Swedish pine, they are laminated to reduce the risk of deformations or warping.
- Stainless steel screws from the German brand Reisser.
Questions? Don't hesitate to contact us via the WhatsApp button at the bottom of the screen or by email. We're here to assist you further!
